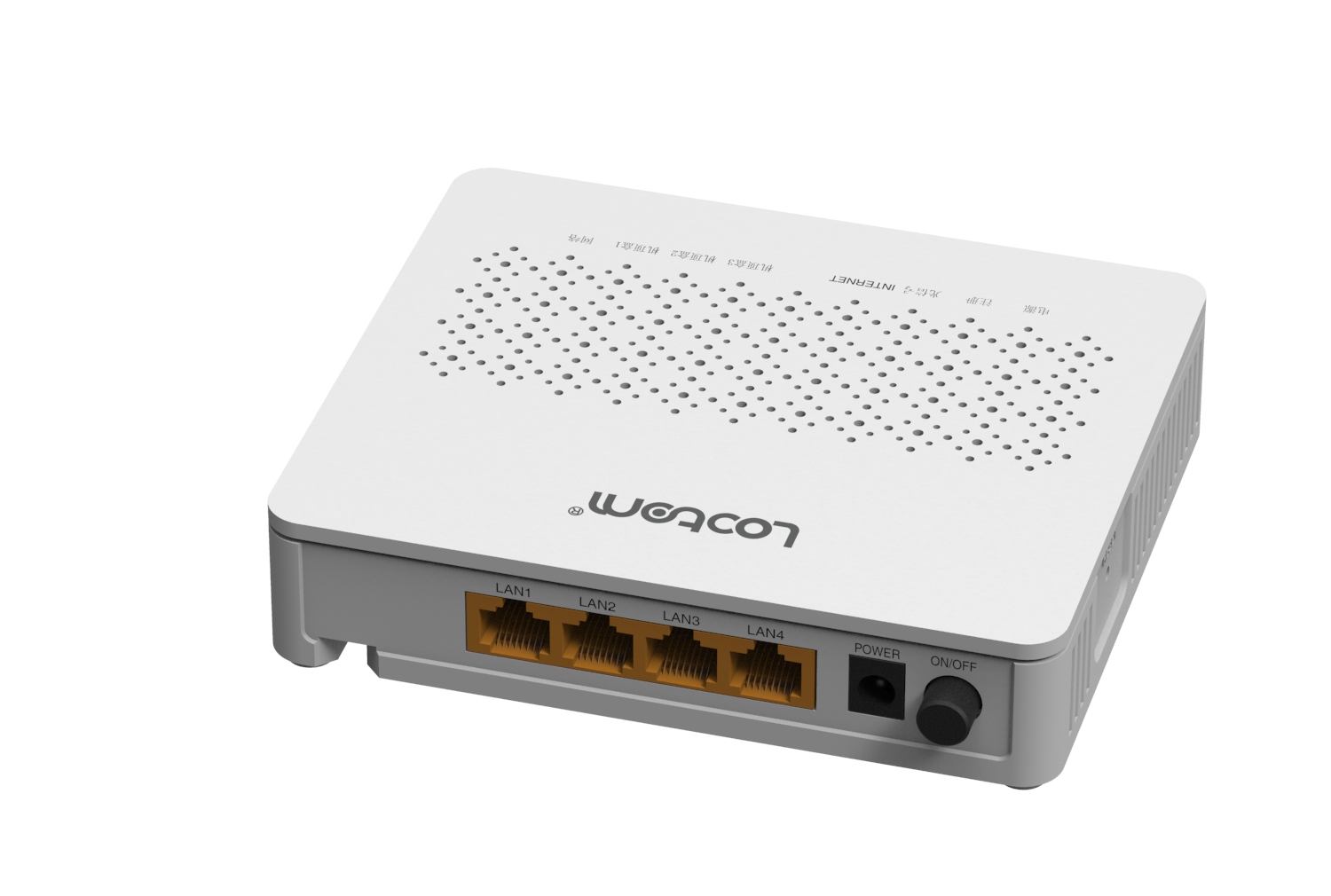

    GPON ONU 4FE PORTS GDONU300-4FE

    GDONU300-4FE is a XPON ONU device designed based on mixing and multi-service network is also XPON SFU/HGU terminal applied ...

    Current position：HOME > PON

    GPON ONU 4FE PORTS GDONU300-4FE

    Overview        GDONU300-1GE GPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides one 100/1000Mbps adaptive port, high-speed data and quality video services. It follows the 802.3ah IEEE international standards, with good interoperability and interoperability and can work with OLT of all the mainstream manufacturers. Features         ● It supports 1.25 Gbps up and 2.5 Gbps down asymmetric PON transmission rate and it can realize the high split ratio of 1:128 and up the coverage radius to 20 km.
            ● It follows the ITU-T G.984 and IEEE802.3ah. GPON and EPON standard, and it supports remote management, configuration and maintenance through work with OLT of other manufacturers
            ● Support Telnet remote maintenance and configuration
            ● Support software online upgrade. Technical Specifications

    Item

    GDONU300-4FE

    User Networks ports

    1*10//100/1000M+3*10/100M BASE-T self-adaptive RJ45 interface

    PON ports

    GPON:  Uplink  transmission rate:1.25GBPS

    Downlink l transmission rate:2.5GBPS

    EPON:  Uplink  transmission rate:1.25GBPS

    Downlink l transmission rate:1.25GBPS

    Network coverage radius : 20 km

    Optical interface type：SC/PC or SC/APC

    Optical receiver with high sensitivity : ≥-28dBm

    Luminous power：1~4dBm

    Dimension

    173 mm(W) x 117 mm(D) x 33 mm(H)

    Box dimension: 23 mm(W) x 25 mm(D) x 80 mm(H)

    Weight: 0.5kg

    Installation ：plug and play

    Surroundings parameter

    operating temperature：0℃～50℃

    storage temperature：-40℃～80℃

    Power supply

    DC12V/1A adapter type power supplying

    Power consumption

    <5W

    Body case

    Plastic case

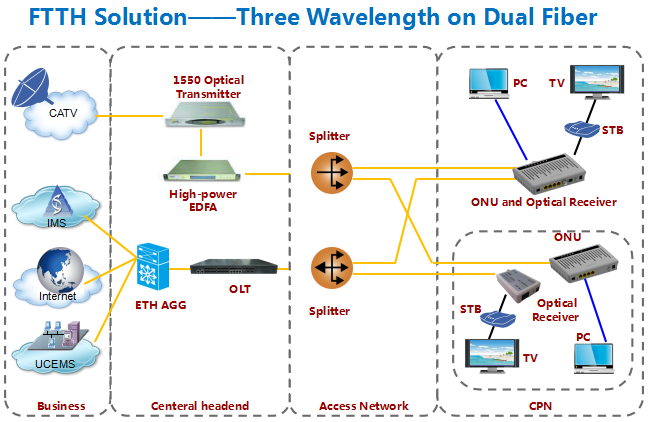

    Network diagram
